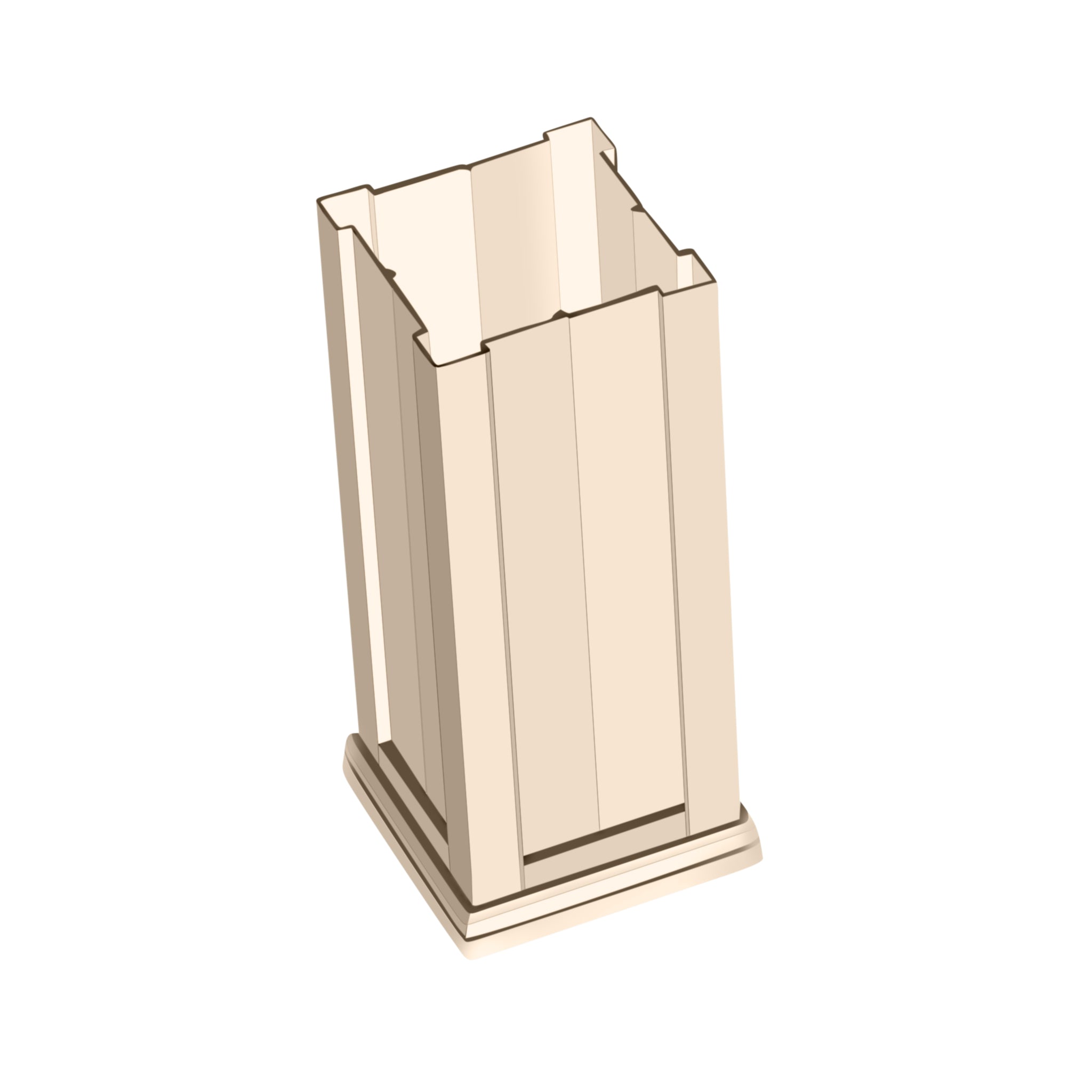

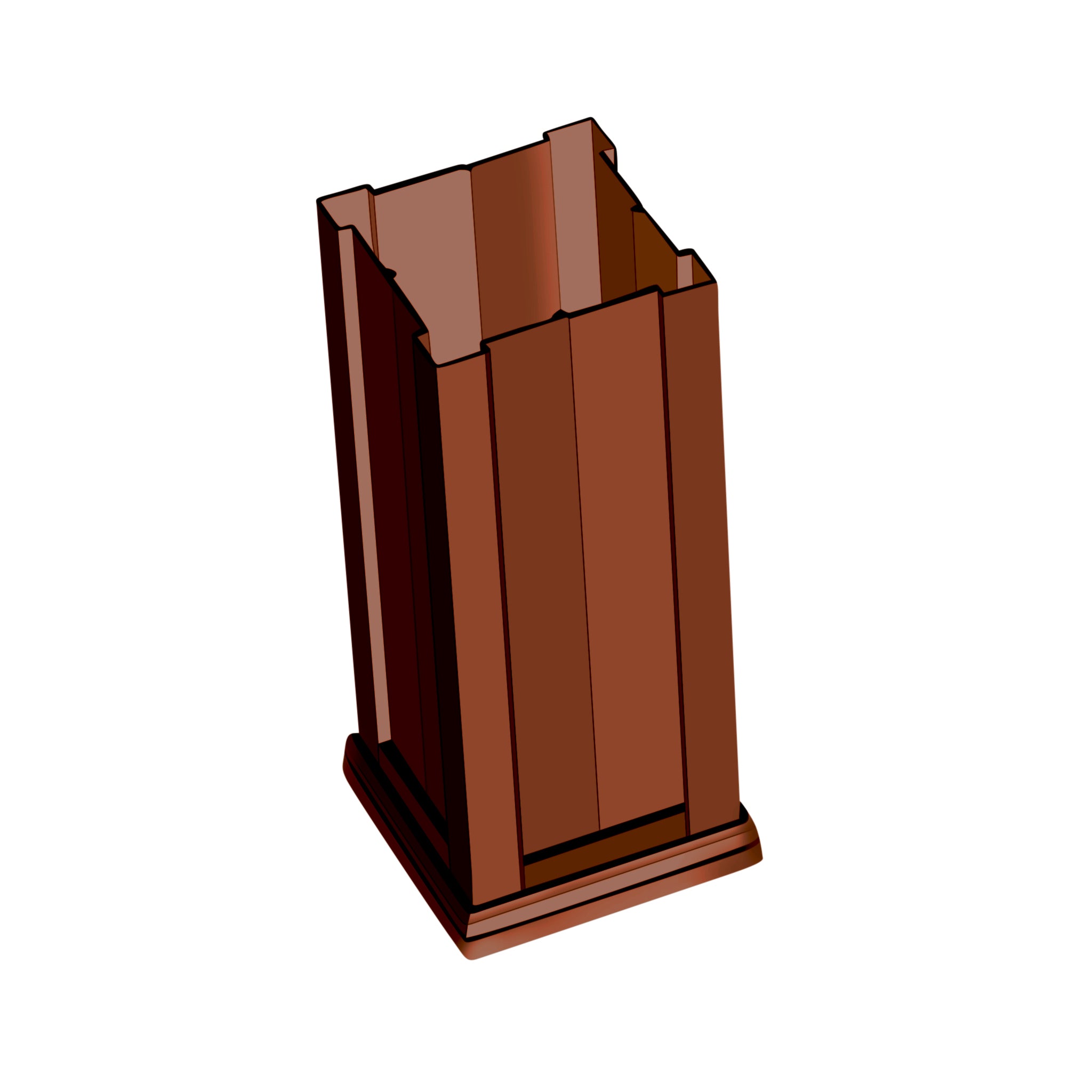

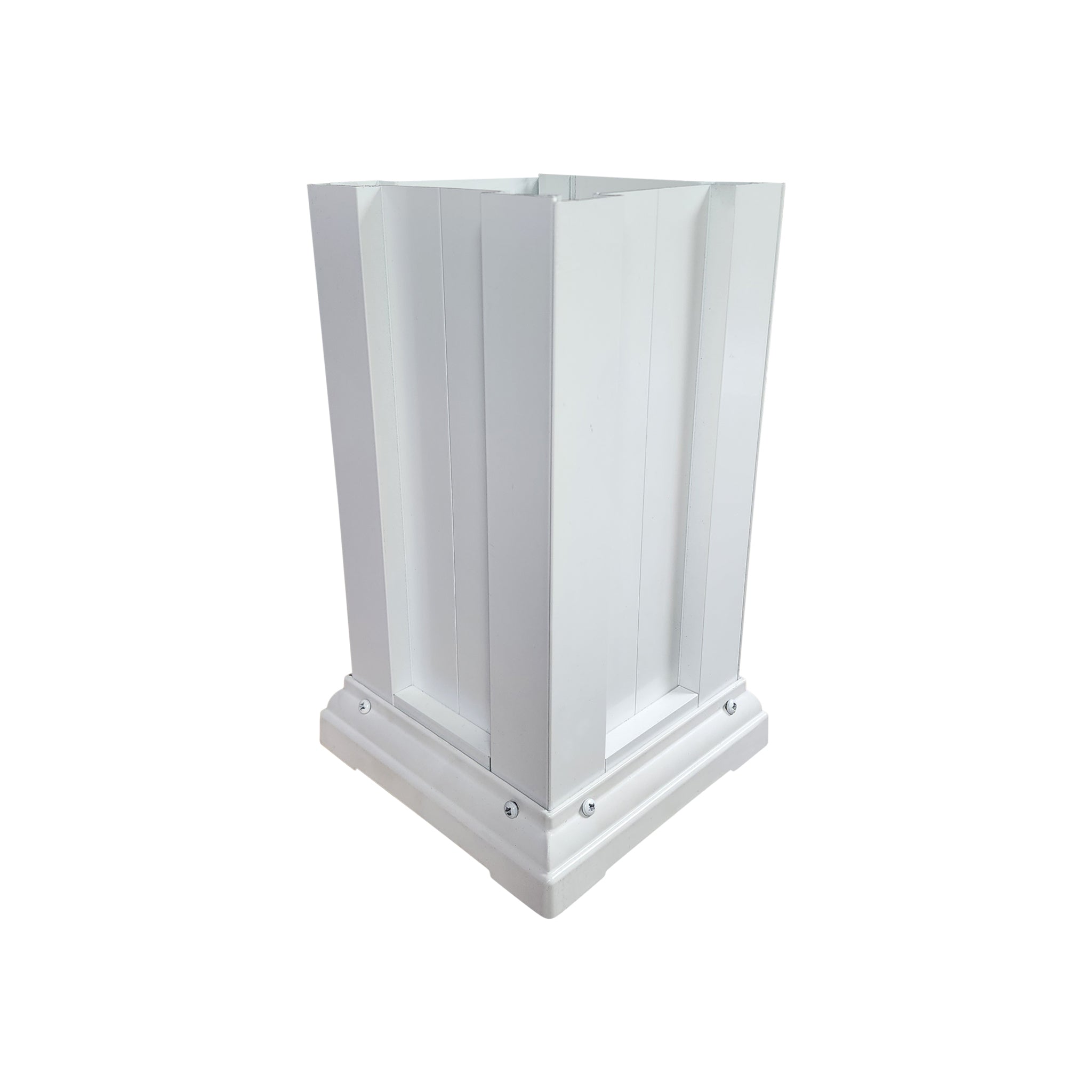

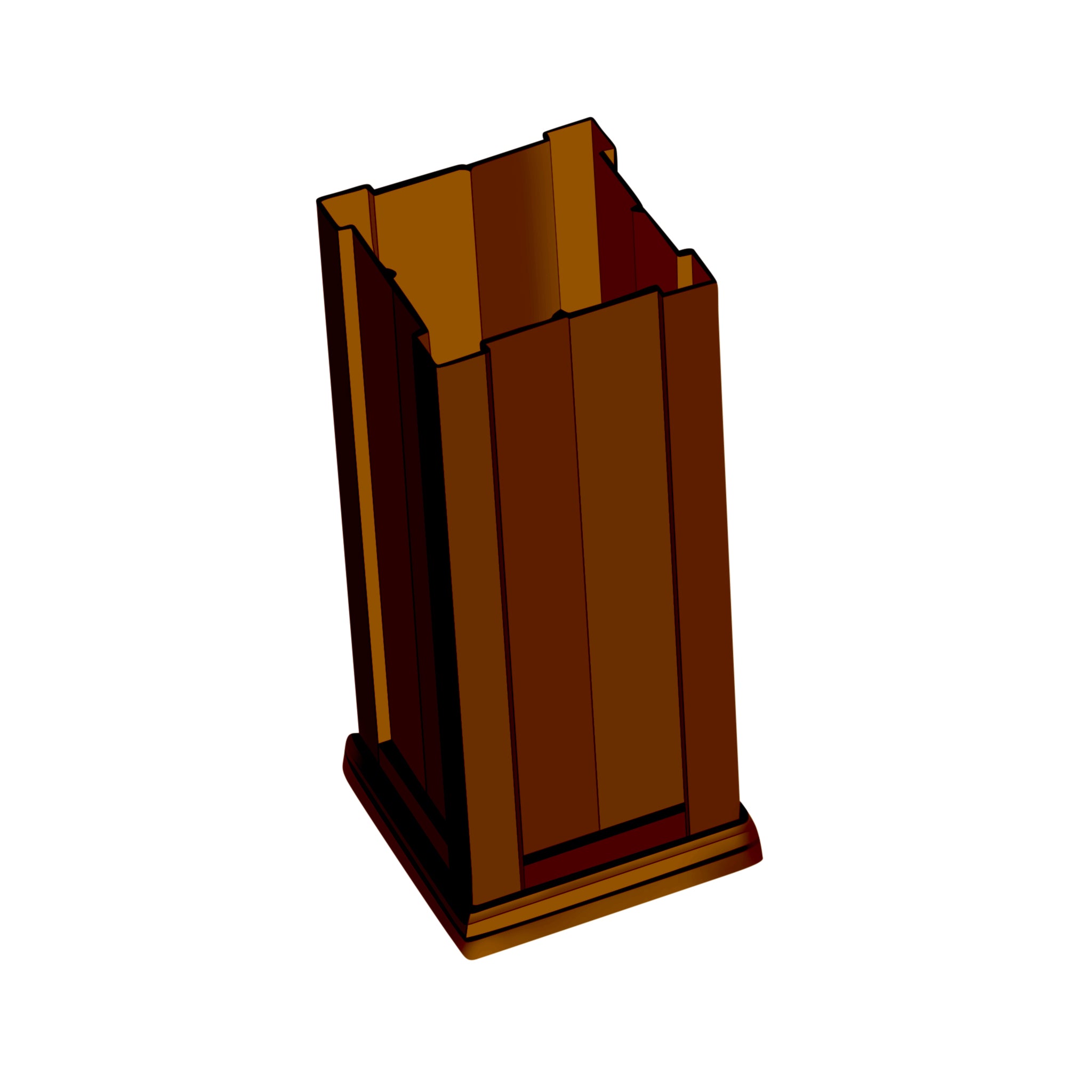

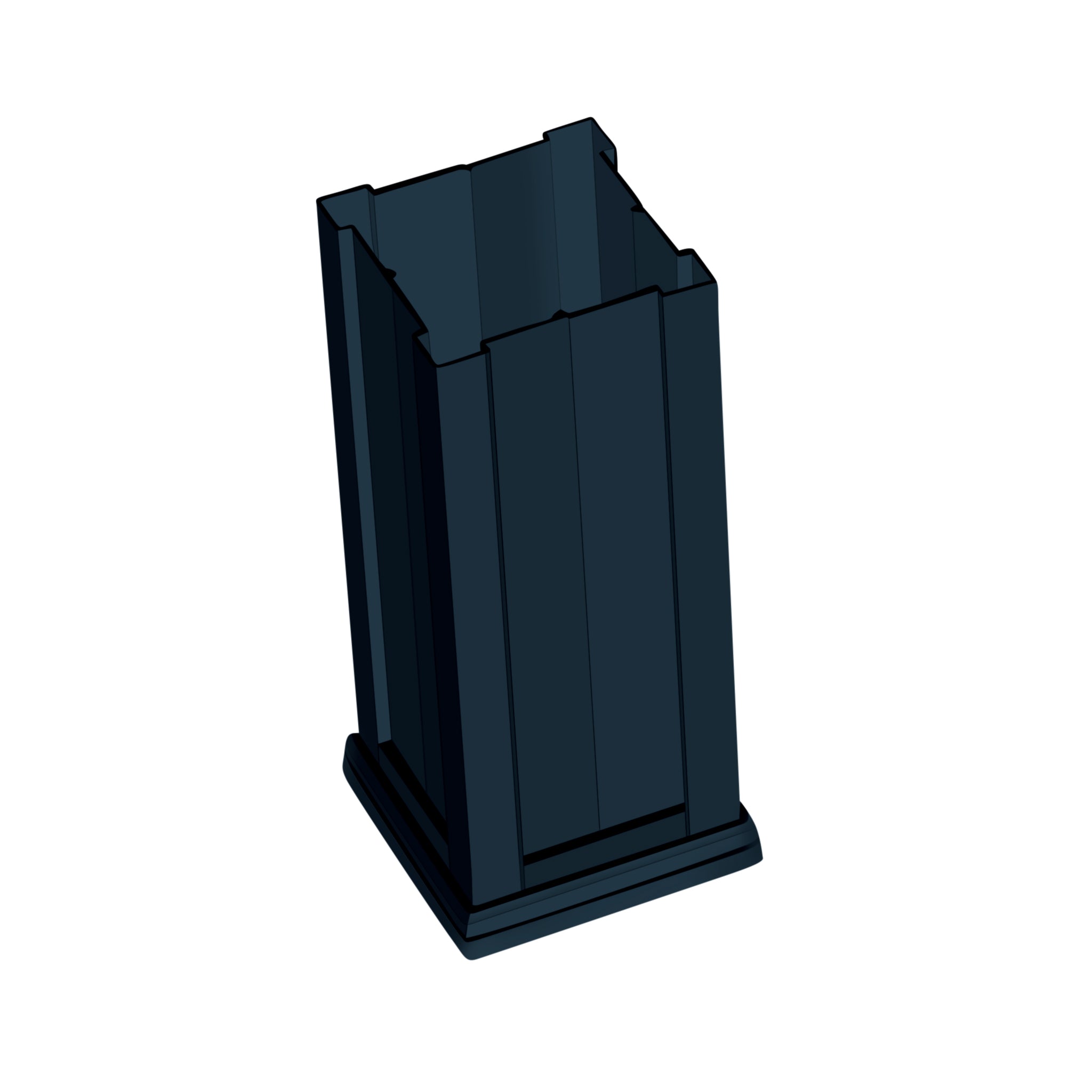

Square Panel Metal Column Wraps

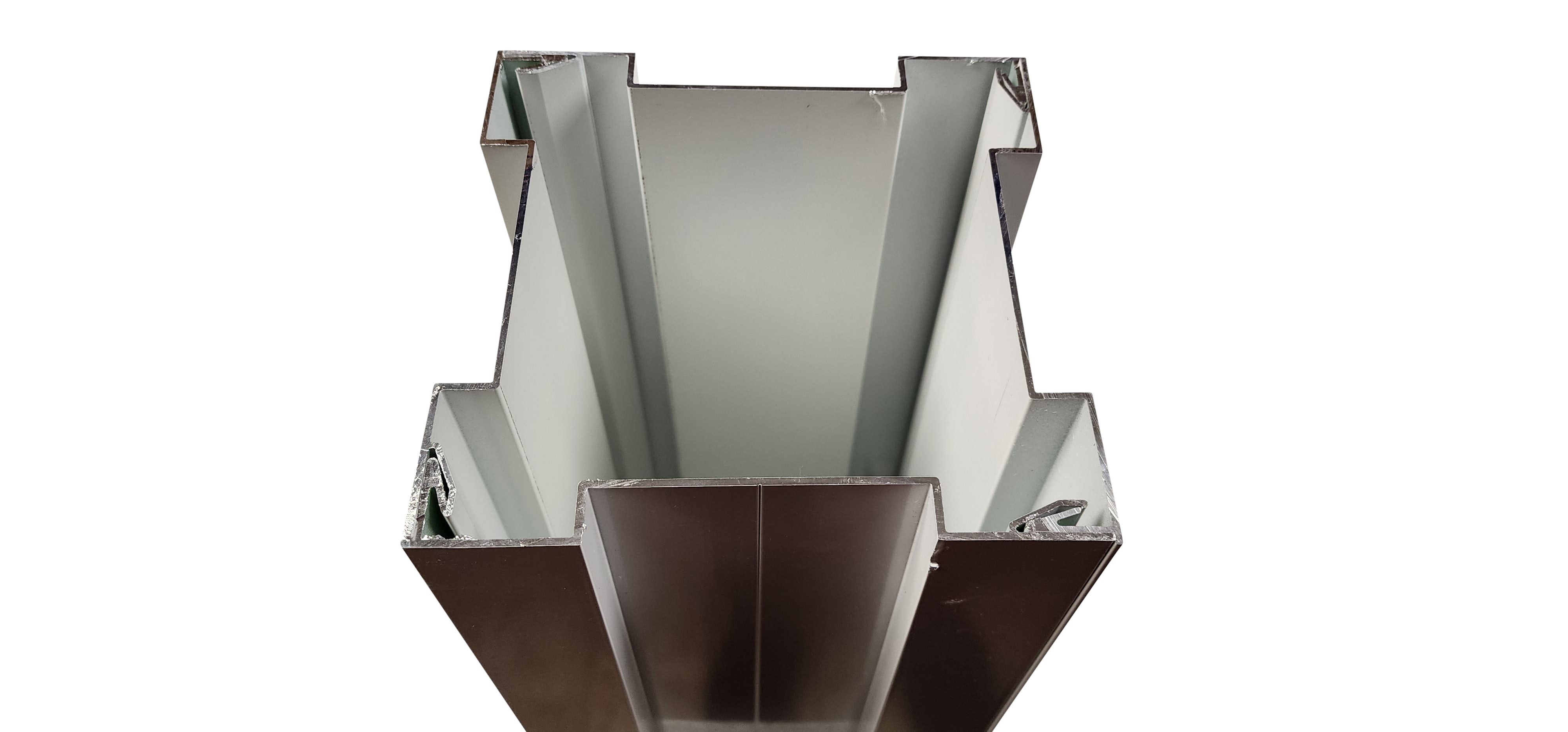

• Extruded Aluminum in 6063-T6 Alloy
• Aluminum Die Cast Fittings in 380.1 Alloy
• Extrusion Finish is Electrostatically Applied and Baked on
• Castings are Powder Coated Paint
• Load Tested to Exceed BOCA Requirements

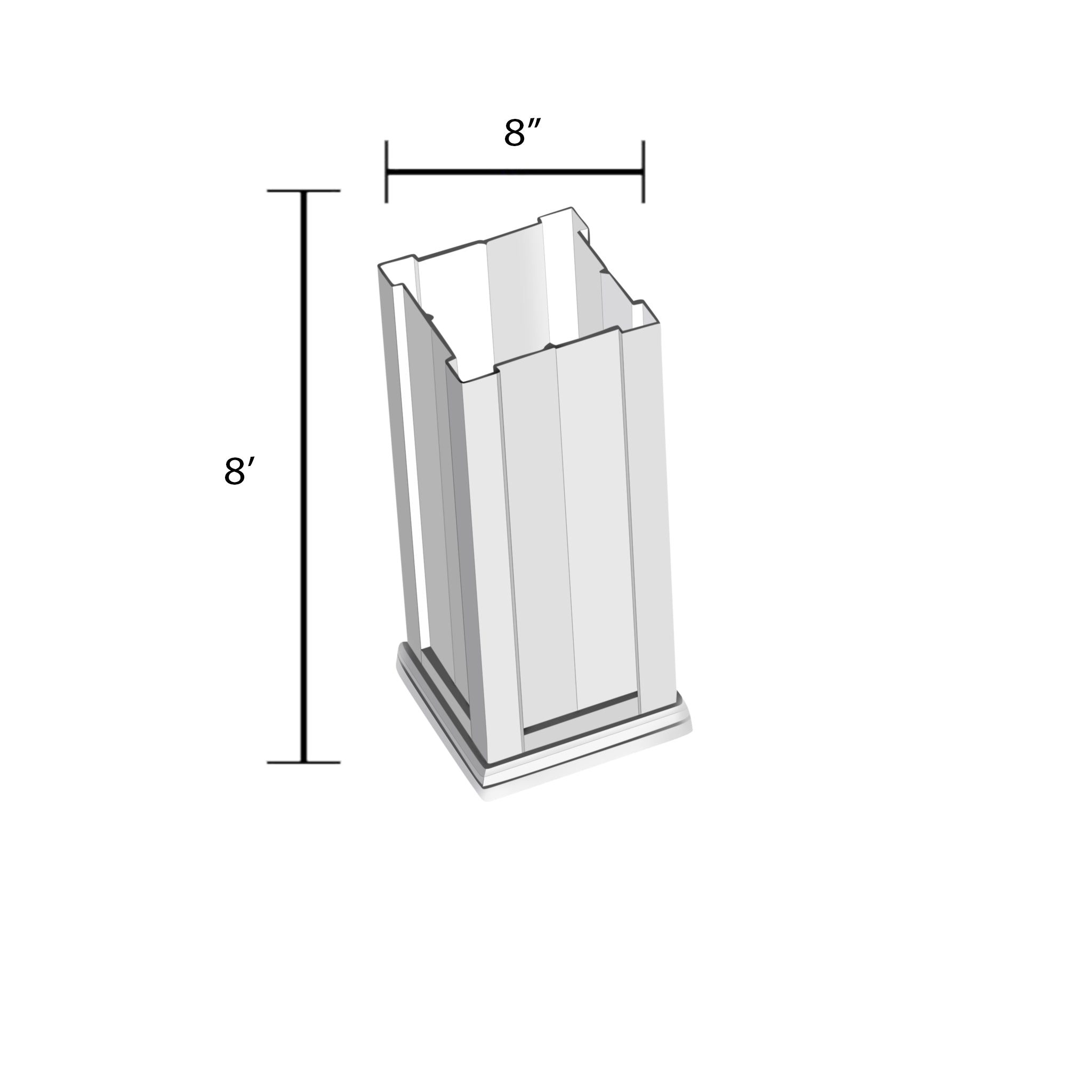

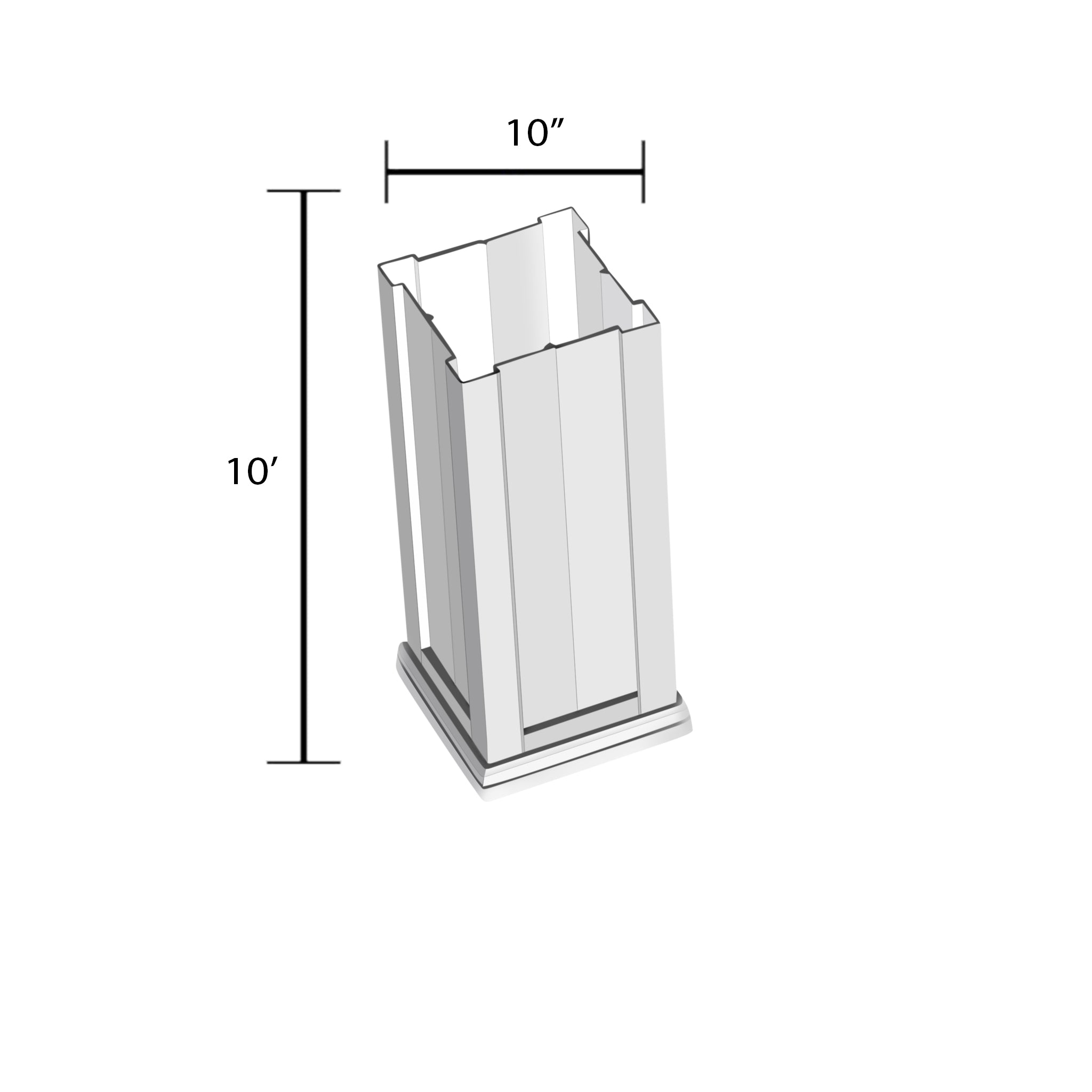

Square Columns

4"x8' 4''x9', 4''x10' - 10,600 lbs
6"x8', 6''x10' - 12,866 lbs
8"x8', 8''x10'' - 12,366lbs

Round Columns

6"x8',9',10' - 25,333 lbs
8"x8',9',10',12' - 25,800 lbs
10"x8',10',12',16',24' - 32,166 lbs

12"x8',12',18',24' - 28,500 lbs
16"x8',10',12' - 31,430 lbs
16"x16',20',24' - 31,430 lbs

• All columns are structural
• Wrap-around assemble
• All aluminum parts
• Proprietary lock system
• #6 x 1 Phillips screws color coordinated
• Standard white finish is electrostatically applied baked on enamel

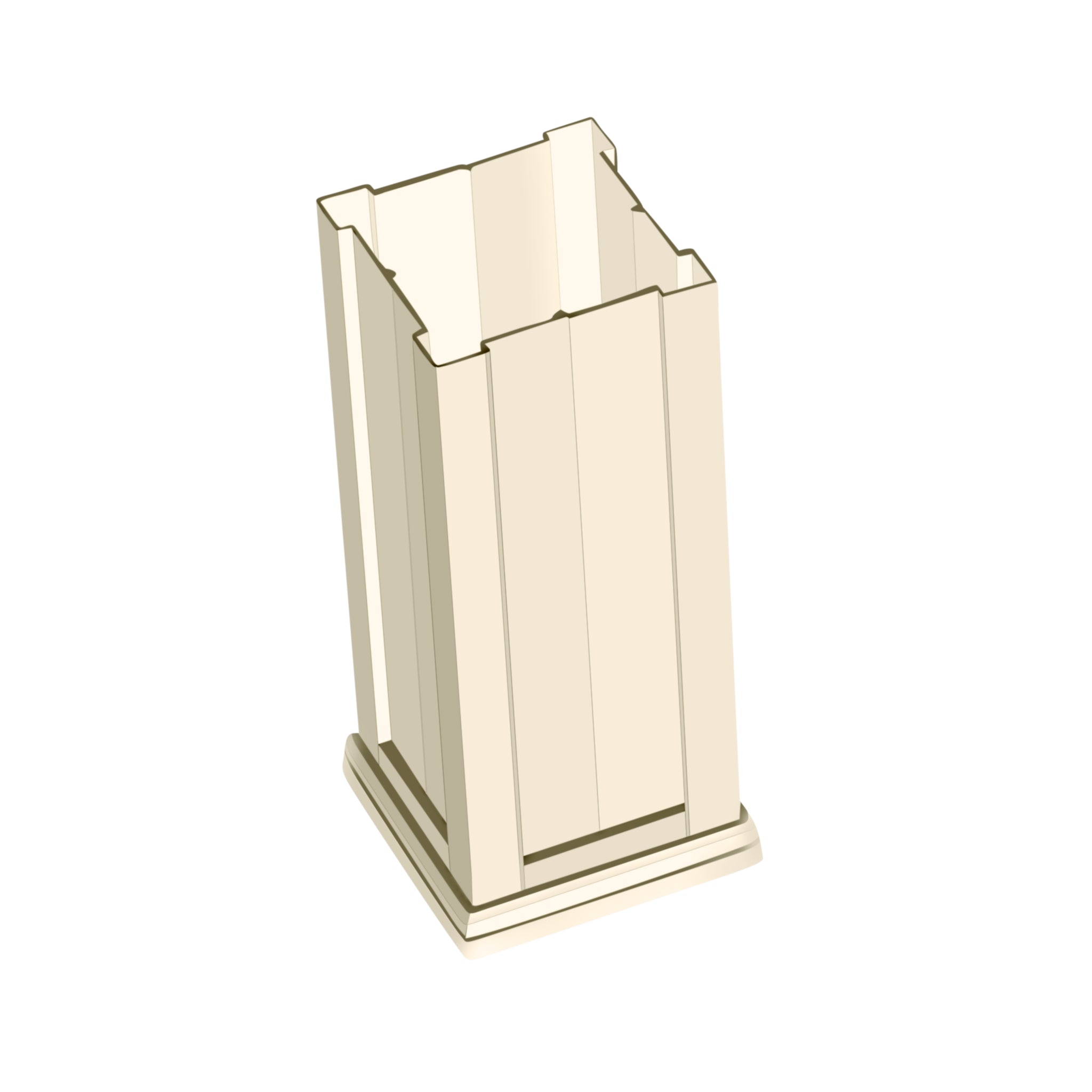

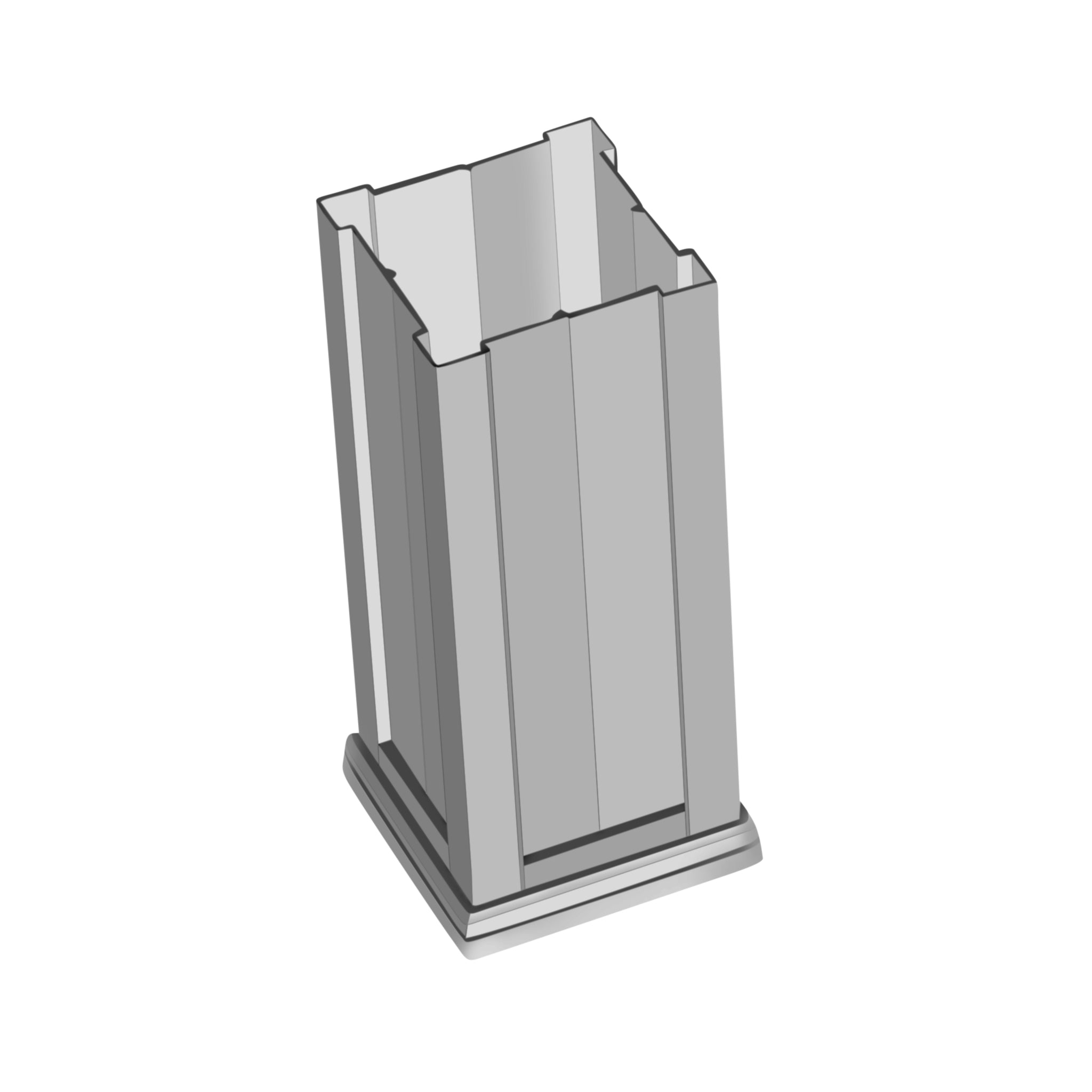

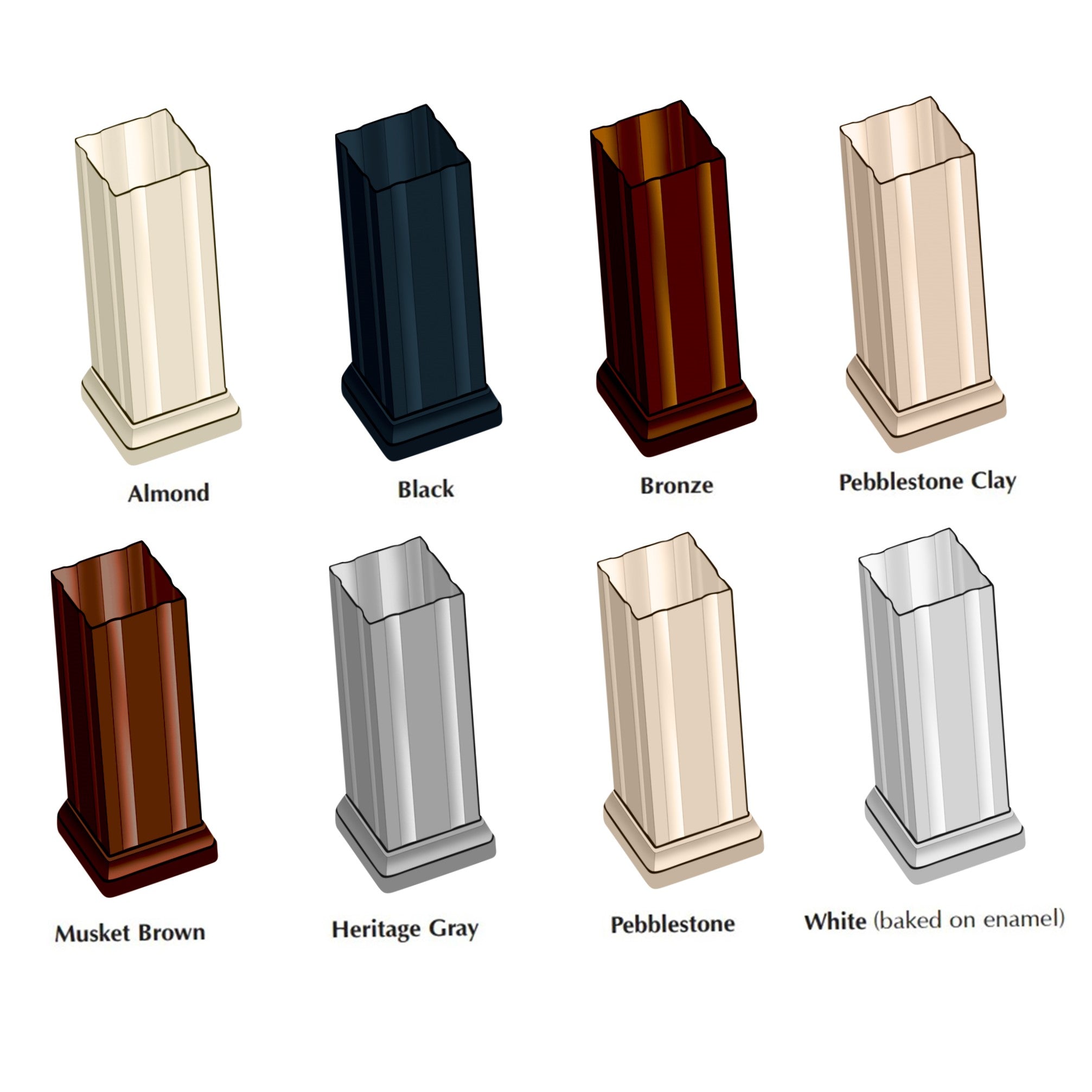

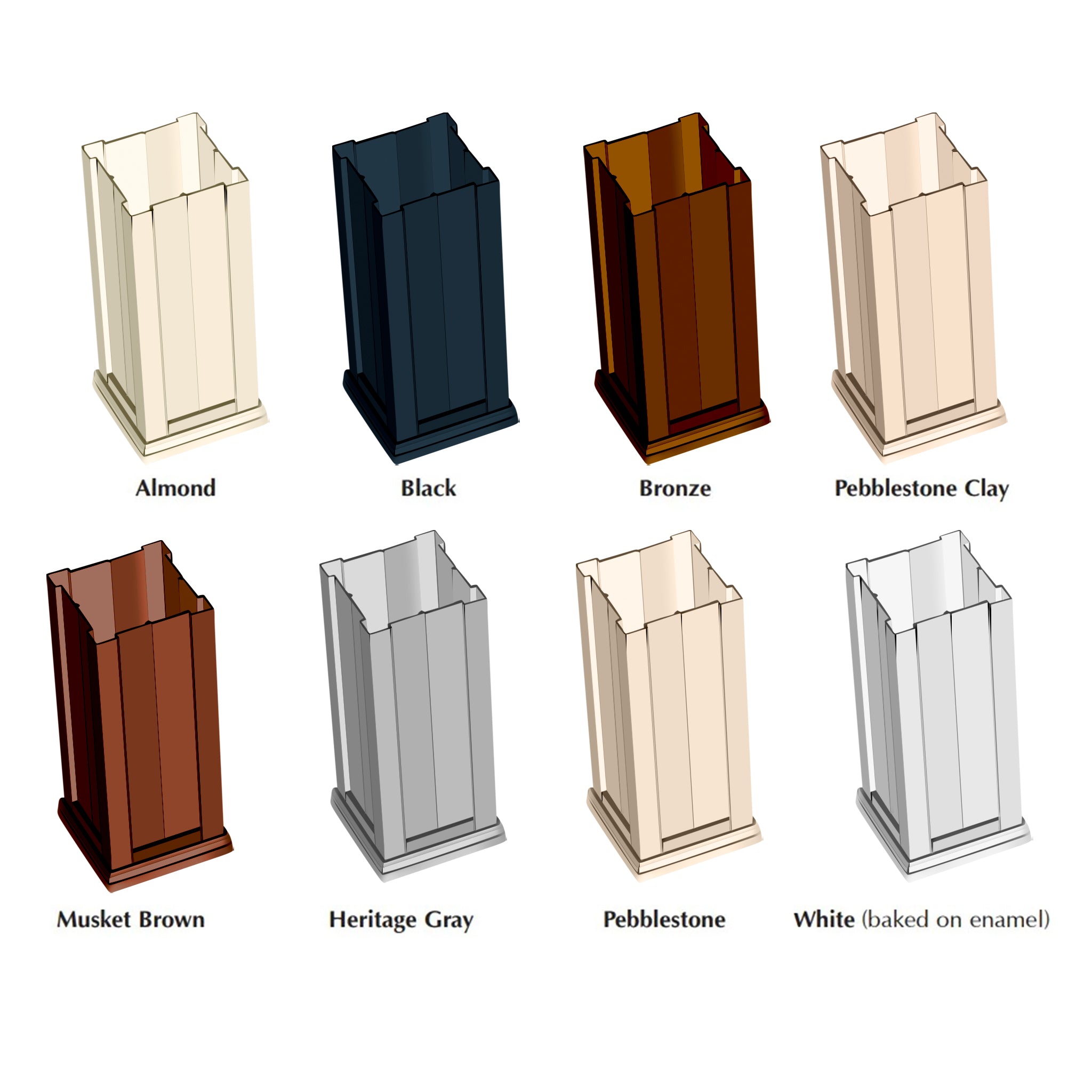

• 8 additional colors available in powder coat finish

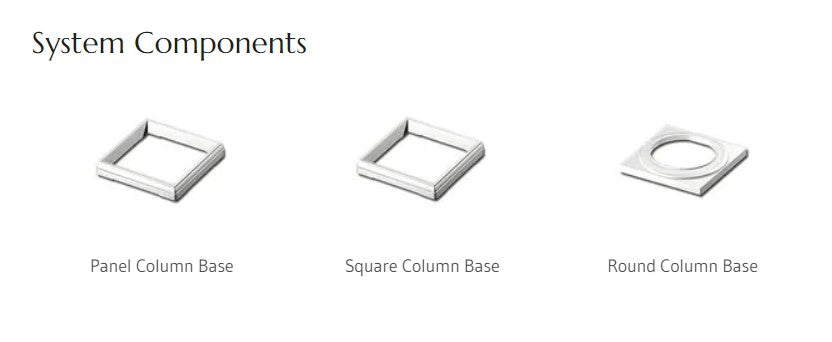

• Bases are die cast aluminum powder coated to match column

Mild soap and water cleaning and periodic waxing with any liquid car wax will keep your railing and columns looking like new for years to come. Use of rock salt or similar corrosives on or around flanges will cause paint failure and voids the warranty.

Flat Rate Shipping Regardless of Order Quantity Based on Your Location:

$199: NY, NJ, CT, WV, VA, VT, TN, SC, PA, OH, NC, NH, MD, ME, GA, FL, CT

$299: TX, OK, MO, MS, KY, IN, IL, DE, AL, WI, RI, NE, MN, MI, MA, LA, KS, IA, ID, AR

$399: CA, WY, WA, UT, SD, OR, ND, NM, NV, MT, CO, AZ
